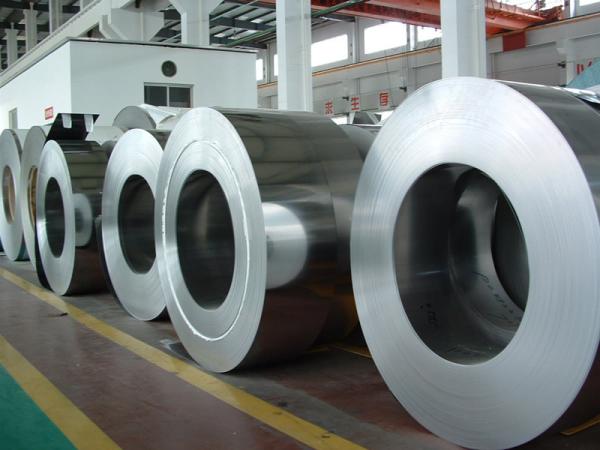

HV160-400 good arc edge, bright and no scraping wire SUS304 cold rolled steel coil
SUS304 cold rolled steel coil with thickness:1.0-3.0mm width: 200-1219mm HV160-400 Surface:2B BA
Density:
|
Steel Grade
|
Density(g/cm3)
|
|
201,202,301,302,303, 304,304L,305,321
|
7.93
|
|
316,316L,316S,347,309S,310,310S
|
7.98
|
|
405,410,420
|
7.75
|
|
409,430,434
|
7.7
|
Stainless steel theoretical weight formula:
Weight (kg) = thickness (mm) × width (mm) x length (mm) × density values
Stainless steel gravity:
Chromium stainless take 7.75 ton / M3
Chrome-nickel stainless steel take 7.93 ton / M3
Iron take 7.87 ton / M3
Description:
316Ti stainless steel plate SUS316 steel Ti added to improve the resistance to intergranular corrosion.Applied to the resistance to sulfuric acid, phosphoric acid, acetic acid, acetic acid.Nickel austenitic the shape 1Cr17Mn6Ni5N section steels, instead of grades 1Cr17Ni7, has magnetic after cold working. The railway vehicle.
Applications:
The strict implementation of national GB/T24511-2009 GB/T13296-91, with GB/T14975-2002, GB/T14976-2002, GB/T12771-2000, A312 and other domestic and international standards, the products are widely used in the petroleum, smelting, food,electrical, paper, water conservancy, chemical industry, chemical fiber, medicine, aerospace, construction, transportation, the wine industry.
Specifications:
Chemical composition:
|
Name
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
Cr
|
Mo
|
Ti
|
|
316Ti
|
≤0.08
|
≤1.00
|
≤2.00
|
≤0.035
|
≤0.030
|
10.00~14.00
|
16.00~19.00
|
1.80~2.50
|
≥5*C%~0.70
|
Mechanical Properties :
|
YS(Mpa)
|
TS(Mpa)
|
EL(%)
|
Hv
|
|
≥205
|
≥520
|
≥40
|
200
|
Thinckness:1.0-3.0mm
Width: 200-1219mm
Hardness: HV160-400
width Tolerance:±0.02mm
surface: good arc edge,bright, no scraping wire
The commom size:
0.1*160mm 0.1*300mm 0.1*140mm
0.06*200mm 0.06*300mm 0.06*400mm
0.2*20mm, 0.2*30mm 0.2*40mm
0.2*2mm 0.2*3mm 0.2*4mm
other sizes as your requirements to produce.
Competitive Advantage:
First-class quality, complete specifications, reasonable price, timely delivery and rigorous specified according to customer requirements, suited materials for basic principles, to allow customers to buy satisfaction with assured.
